How to Compare TENS Units – A Review of 5 Signal Types

TENS unit - althlete shoulder.png

The use of electricity in medicine has a variety of common applications and origins that go back decades. Whether it’s a cardiac pacemaker, a defibrillator or an implanted stimulator, electrotherapy provides a number of well-established benefits – one of which is pain relief and muscle rehabilitation.

The first step for those considering electrotherapy to treat pain and muscle conditions is knowing that there are three primary options available. From least invasive to most invasive, these include transcutaneous, percutaneous and implantable.

Related Reading: When is an Implanted Stimulator the Right Choice?

The most widely used group of electrotherapy devices fall into the transcutaneous category – also known as TENS (Transcutaneous Electronic Nerve Stimulation). But with options ranging from prescription-only units offering high-frequency signals of 5000 Hz to over-the-counter units offering low-frequency signals of 50 Hz, it can be challenging to know when to pick one over another. A review of the various signal types, however, provides a way to begin discerning the optimal applications for different devices.

Reader note: This article is the first in a planned series to explore electrotherapy signals, applications and devices. The various signals are explored in this post, and a future post will address devices.

TENS Units – One Name, Many Different Devices

Before diving into this analysis, it’s important to clear up a common misperception – that all TENS devices are the same. This is like saying one pill is just like any other. Categorically, these devices are used to treat chronic and acute pain, and, in some cases, muscle conditions.

The one attribute all transcutaneous devices do have in common is that they transmit electrical signals through the skin by way of electrode pads that adhere on top of the treatment area. The challenge – the confusion, really – is that the category itself and a specific device type within the category both get referred to as TENS.

It’s a bit like facial tissue being called Kleenex®. There is a specific brand named Kleenex within the facial tissue category, but many people have gotten used to calling all facial tissues “Kleenex.” In this article, any mention of TENS will be referring to the TENS category unless stated otherwise.

Exploring 5 Signal Types Used for TENS

Each type of signal offered by TENS units has a place in the arsenal of tools available to healthcare providers who have patients with painful musculoskeletal conditions. The “right” signal will depend largely on the diagnosis and prior treatment outcomes.

Knowing that signals are “tuned” for different purposes – for instance, causing a muscle to contract or preventing a nerve from transmitting pain signals – presents a guide to understanding the therapeutic value of each. This is also the first step to determining the best device for the patient.

1. Neuromuscular Electronic Stimulation (NMES)

NMES uses alternating low-frequency signals (<100 Hz) to treat muscle tissue. These low-frequency signals cause skeletal muscle to contract and release in a pattern that acts as a blood and lymphatic fluid pump – i.e., the blood pump mechanism of action. The key benefits of this contract-and-release pattern are that it prevents disuse atrophy, increases circulation and re-educates tissue.

Treatments are usually short and taken daily at home or in-clinic. Intensity settings are adjusted by the user. Treatment with two electrodes may be sufficient, or patients can use four electrodes to treat a larger area.

Waveform

Sample waveform commonly used in NMES therapy

Sample waveform commonly used in NMES therapy

Indications for NMES

  • Relax muscle spasm

  • Prevention or retardation of disuse atrophy

  • Maintain or increase range of motion

  • Increase local blood circulation

  • Re-educate muscle

  • Immediate post-surgical stimulation of calf muscles to prevent venous thrombosis

Contraindications (see below)

2. TENS Stimulation (the Device Type, not the Category)

A standard TENS unit typically delivers a low-frequency (<50 Hz) alternating current to a focused treatment area. Due to the nature of low-frequency, however, these signals have a low capacity to overcome skin resistance – resulting in these units only providing pain relief via the Gate Control Theory while being worn. As such, these units are often worn continuously. Intensities are user-adjustable on most devices.

Waveform

Sample over-the-counter TENS device waveform

Sample over-the-counter TENS device waveform

Indications for TENS

  • Symptomatic relief of chronic, intractable pain

Contraindications (see below)

3. Interferential Stimulation (INF)

Interferential therapy uses two slightly different high-frequency signals (>5000 Hz) that intersect within the body to create an area of interference – a “sweet spot” in the treatment area where the therapeutic benefit is most pronounced.

The nature of high-frequency assures that these signals are able to overcome the skin’s natural resistance and reach nerves deep in the tissue, providing fast-acting pain relief via the Gate Control Theory. As an added advantage, they also offer long-lasting pain relief via the release of endogenous opiates.

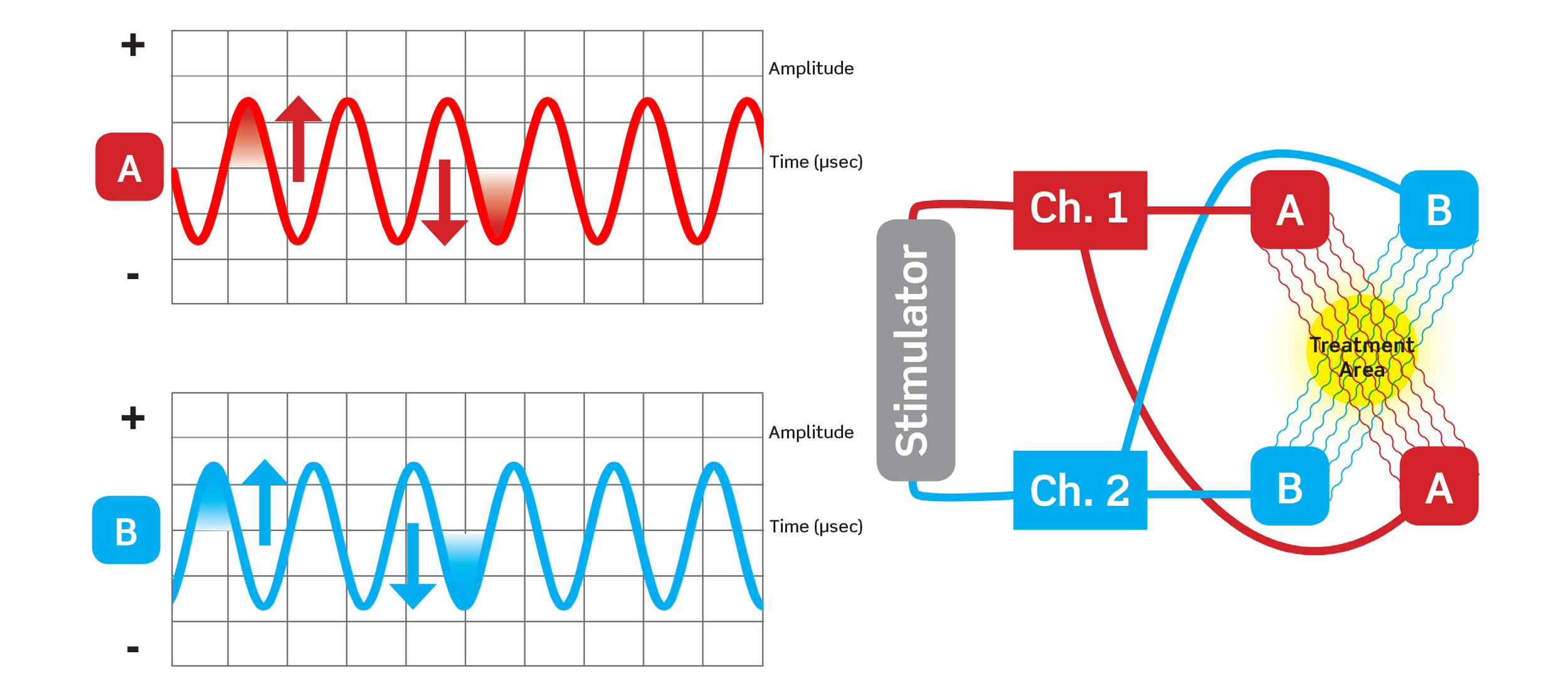

Traditional INF waveforms (at left above) cross in the body to create an area of interference that delivers pain relief in the treatment area (at right above)

Traditional INF waveforms (at left above) cross in the body to create an area of interference that delivers pain relief in the treatment area (at right above)

INF treatments are generally short, about 30 minutes, and taken daily at home or in a physical therapy clinic. Signal intensities are adjustable by the user or clinician.

Indications for Premodulated INF

  • Relieve acute pain

  • Relieve and manage chronic pain

Contraindications (see below)

4. Premodulated Interferential Stimulation (Premodulated INF)

Premodulated INF differs from traditional INF in that the current for each channel is pre-mixed within the device, as opposed to inside the body. The key benefit of this type of stimulation is that it creates an expanded treatment area.

Because signals are pre-mixed, the area of interference stretches between each set of electrodes, not just where signals intersect. The result is that premodulated INF provides a significantly broader area of pain relief, allowing for the treatment of large body areas particularly when using four electrodes.

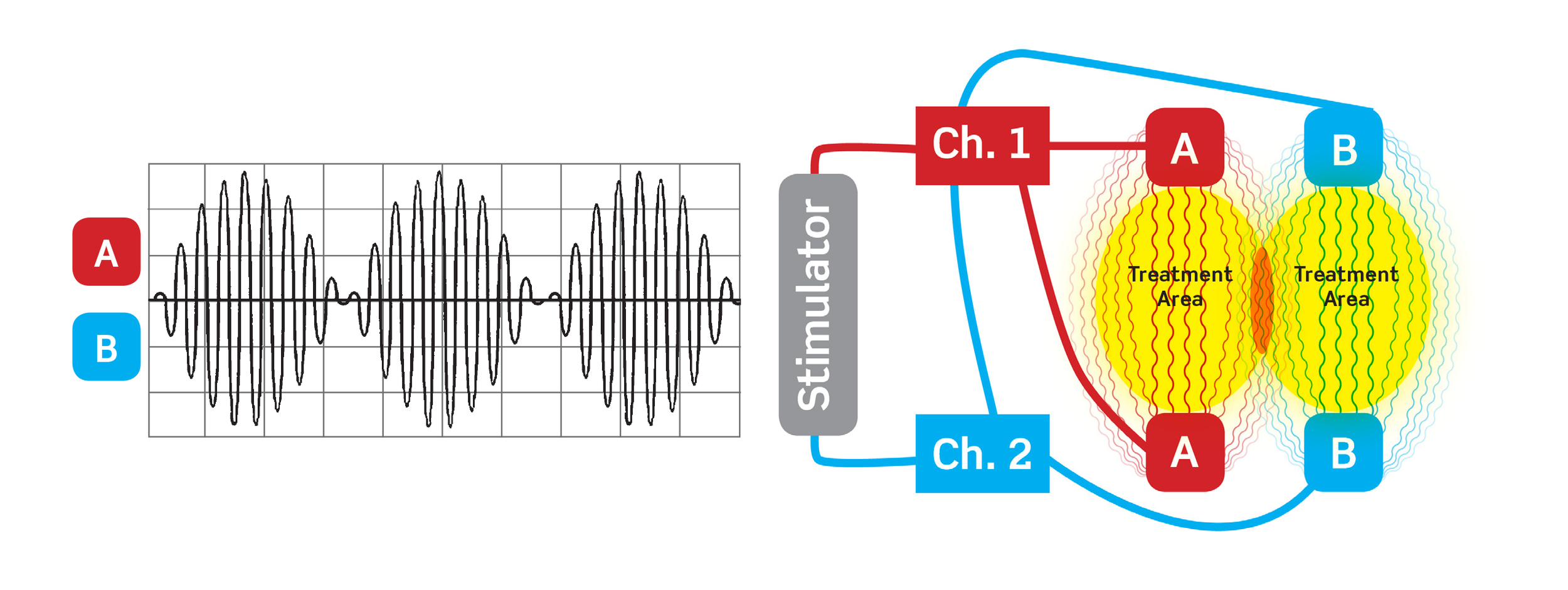

Premodulated INF signals (at left above) are pre-mixed in the device prior to entering the body and provide an expanded area of therapeutic benefit (at right above)

Premodulated INF signals (at left above) are pre-mixed in the device prior to entering the body and provide an expanded area of therapeutic benefit (at right above)

While the primary value is for larger areas, it can also be useful when treating small muscle groups or joints (elbow, ankle, foot) where only two electrodes can be used due to space limitations. For devices that are able to offer more than one signal type, an additional advantage of premodulated INF is that the electrode pads do not need to be repositioned for muscle therapy (via NMES).

Premodulated INF treatments are generally short, about 30 minutes, and taken daily at home or in a physical therapy clinic. Signal intensities are adjustable by the user or clinician.

Indications for Premodulated INF

  • Relieve acute pain

  • Relieve and manage chronic pain

Contraindications (see below)

5. Galvanic Stimulation

Galvanic stimulation applies high-voltage direct current to reduce edema in acute injuries associated with major tissue trauma. Direct current creates an electrical field over the treated area that, theoretically, changes blood flow. The positive pad behaves like ice, causing reduced circulation to the area and a reduction in swelling. The negative pad behaves like heat, causing increased circulation and faster healing.

Galvanic treatments are generally taken daily at home, although patients may periodically take them in-clinic.

Waveform

Sample galvanic waveform

Sample galvanic waveform

Indications for Galvanic

  • Impaired perfusion or circulation

  • Inflammation

  • Edema

  • Peripheral neuropathy

Shared Contraindications for all Electrotherapy

Electrotherapy devices, regardless of device type, share the following contraindications:

  • Electrotherapy should not be used to treat symptomatic local pain unless the cause of the pain has been clearly diagnosed

  • Electrotherapy should not be used in areas of the body where cancerous lesions exist

  • Electrotherapy should not be applied in areas of the skin that are swollen, infected or inflamed (e.g. varicose veins)

  • Electrotherapy should not be used on patients who have a cardiac pacemaker, implanted defibrillator, or other implanted metallic or electronic device because this may cause electric shock, burns, electrical interference, or death

  • Electrotherapy should not be applied to the anterior neck (carotid sinus) or through the head

  • Patients suspected of having serious infectious diseases or diseases that require heat or fevers to be suppressed should not be treated with electrotherapy

  • Women who are pregnant should avoid electrotherapy treatment, as safe use has not been established for pregnancy

Next Steps

Knowing that all transcutaneous electrotherapy devices are not the same is the first step in understanding the TENS category. Taking a deeper dive into what makes them different reveals that there are five signal types with varying indications for use – the distinctions of which can help healthcare providers hone in on a particular therapy, and ultimately device, that will be most beneficial for each patient’s condition.
